Sunday, November 27, 2016

Project 2_Core Structure of Shanghai Tower

Use galapago to test the best base circle

Use Python to build Core Profile
Set a startPoint on the center of the circle, name it as firstPoint in Code.
firstPoint = rs. coerce3dpoint(startPoint)


Generate central points of the whole building


Pick out the points of the separation spaces.
Set Multiple Integers of Item tool

Make plate on those points, and use them as separation areas.


Between each separation areas are the core structures. They are separated into 6 zones, from the bottom to the top, and their diameters gradually reduced based on the diameter of the separation floor.



Use the same method to build each zone.

In the end, merge curves together and use 'Boundary surface' tool to make them as surface.


  Extrude each surface on Unit Z.
The core structure has been built.
Use python to set camera
Draw an arc surround the tower and set a center point on the zero point.
Divided the arc into to 100 parts and pick an item on it as the camera. Set the center point as target (focal point).

vp = sc.doc.Views.ActiveView.ActiveViewport
vp.SetCameraLocation(loc, False)
vp.SetCameraDirection(tar-loc, True)


Project 2_Shanghai Tower Core Sturcture


Monday, October 31, 2016

Introduction

Shanghai Tower is designed by Gensler and it is the 2nd tallest building in the world. The tower has been designed as a soft vertical spiral rotating at about 120 degrees and scaling at 55% rate exponentially. The tower functions as a self-sustaining vertical city. It is a mixed-used building of unique, vertically interconnected neighborhoods that evolve as the tower slowly rises toward the
sky. The building will comprise 120 floors plus four additional floors of equipment rooms and Tuned Mass Damper (TMD). The top of the structure is at 632 meters (2,074 feet) height. - Shanghai Tower Façade Design Process (2010)


Screenshots and Description

1. Build the horizontal profile
"The profile shape is based on an equilateral triangle. Two tangential curves offset at
60 degrees were used to create a smooth shape. " SHANGHAI TOWER FACADE DESIGN PROCESS BY ALEKSANDAR SASHA ZELJIC, AIA, LEED AP
2. Move: draw the base and move it up to 117th floor on Z axis.

3. Rotate: Each floor will rotate one degree from the first floor to the 117th floor.
radius=degree(120)*3.14/180
Scale: The X and Y axis of each level will be scaled by a “Series” of numbers which is -0.005.

 4. Roof: Use the same method as previous form design to move the 117th plane up 8 levels, at the same time rotated and scaled it.

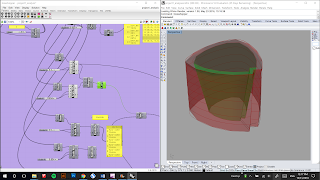

5. Offset the bottom and top curve with a different scale to build the crown shape. Then loft them to make the inside of the crown.
6. Because the rooftop is ramped up with an unequal degree, the center points of the crown need to be rearranged as group-3 (center lines) show.
7. Select the top and bottom central points of the rooftop and subtracted them. Then separate 36 points between them.
Use ‘Graph Mapper’ to separate the center points into 36 with different space.


8. Separate the center points into 36 with different space. Then divide inside loft and outside loft of the crown into 36 parts as well. Interpolate the items and loft them as roof cover.


9. Connect the top curve with the bottom curve. Rooftop completed.

10. Rendered Shanghai Tower Modul
